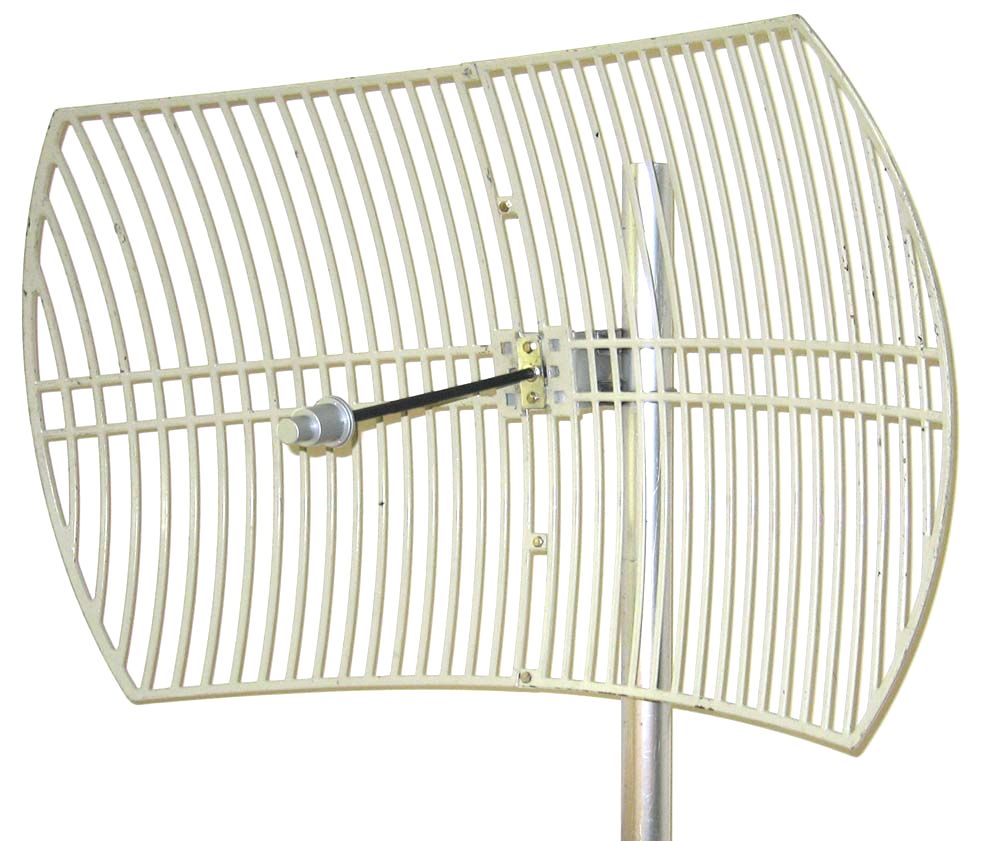

WL-5030-DS 5GHz Grid Antenna

Model

WL-5030-DS

Frequency Range (MHz)

5725～5850

Bandwidth (MHz)

125

Polarization

Vertical

Gain (dBi)

30

Half-power beam width (°)

Horizontal:4

Vertical:6

F/B Ratio(dB)

≥25

Impedance (Ω)

50

VSWR

≤1.5

Maximum Power (W)

100

Lighting Protection

DC Ground

● 5.8GHz WLAN System

● 5.8GHz Band

● Support IEEE 802.11a,g

● Long-distance transmission

● Wireless bridges

● High Gain, Low VSWR

● Aluminum die case reflector

● Low wind loading

● UV Stable coat finish

● Supplied with down-tilt & swivel bracke

Mechanical specifications

Connector

N Female

Diameter(cm)

0.9×0.6

Weight(kg)

3.2

Reflector Material

Die Aluminum

Reflector Color

Grey

Mechanical Tilt Capability (°)

0～20

Operating Temperature(℃)

-40～60

Rated wind velocity (m/s)

60

Mast Diameter(mm)

φ35~φ50

Mounting Kit

MK004 L type steel bracket
