WL-430G/T-A 3G/4G Wireless Modem with all function

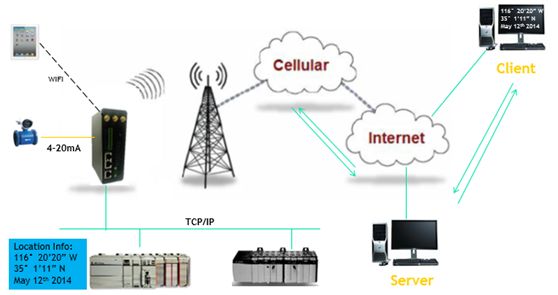

WL-430G/T series support the latest 4G/3G high-speed wireless cellular technologies; Supports dynamic or static IP addressed assigned by cell carriers. VPN Client and DDNS Client has been designed for the module, PLC program can be uploaded/downloaded at anyplace. This enables configuration, programming or debugging of almost any industrial device from any location. Whether you’re using a GPRS, 3G, EDGE, HSDPA, HSUPA or LTE Connection, you can use your regular configuration software just as you would if you were on site. Allowing HMI, PLCs, sensors etc to communicate with each other. Remote Access removes boundaries, eliminates the need for time consuming site visit and provide a network infrastructure suitable for today’s “always-on” society.

All interface and LEDs in the front and with the DIN-Rail in the back make the module well suited for the industry application. In order to protect against issues caused by ground loop, optical isolation was designed between the Ethernet port and Serial port.

● Supported 2G/3G/4G network

● 1 port 10/100 Ethernet LAN switch with LAN / DMZ configurable zones

● 3G/4G module Built-in

● Support WiFi 802.11b/g/n

● Support GPS, According to the NMEA-0183 protocol, send the information such as location and speed to PC, PDA and other devices via serial port.

● IO Signal(2×DI，2×DO，1×AI)

● L2TP/IPSec-based VPN client w/DES, 3DES, AES

● Stateful Packet Inspection Firewall

● Supports dynamic or static IP addresses assigned by cellular carriers

● Support APN/VPDN network

● Support routing function, two Ethernet ports can be used as one for WAN the another for LAN

● DHCP, DDNS, Port Forward and SNMP is supported

● It can be configured by webpage or CLI
