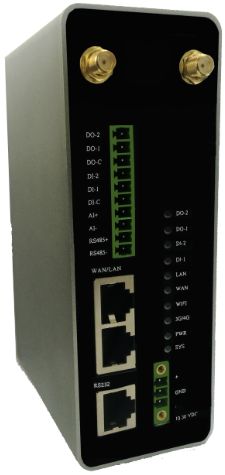

WL-245G-S 802.11a/g Industrial Wireless Module

The wireless module based on the 802.11a/g OFDM technology, three RJ45 port was designed for the module, one port is Rs232 serial port; the other two module is 802.3 Ethernet port; one port for WAN, and the other is LAN; Except that the module can support IO signal transmission (2DI, 2Do, 1AI (4-20mA)), you can send your transmitter data to PLC & HMI by 802.11g. The GPS function also integration into the module, so we can get the location information of industrial devices. The time information also can be get from the GPS module.

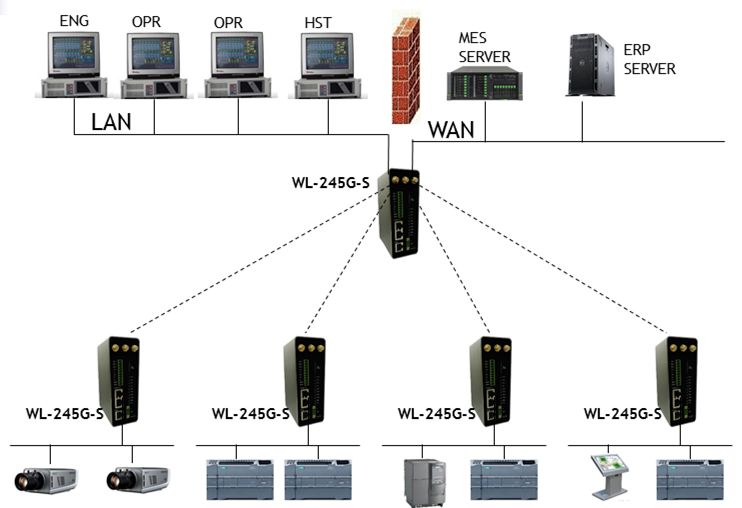

Different from the two layer wireless switch, WL-245G-S has two Ethernet port, one is WAN port and the other is LAN port; the system in different IP segment can be connected through the WL-245G-S module.

● 54 Mbps RF Rates (OFDM)-Multicast,

● Video Monitoring and Automation Control Simultaneously

● Single webpage setup by field personnel

● 2 port 10/100 Ethernet WAN/LAN switch with routing function

● Support Wi-Fi 802.11a/b/g based on 2.4GHz/5.8Ghz

● Centralized management of wireless security policies

● Supports dynamic or static IP addresses assigned by server

● Wireless IO signal transmit

● Data priority can be controlled by QoS

● -20°C to +65°C -operation in all outdoor conditions, rugged construction withstands all operating environments
