WL-245N-S 802.11n Industrial Wireless Module
|
WL-245N-S is designed for the industrial, It is a powerful 802.11n Industrial Wireless Module; It can be applied to Oil & Gas, Coal-Mining, Iron & Steel, Water, New-Energy and other industrial system. Connected your PLC, VFD, DCS, instruments via the wireless technology. |
 |

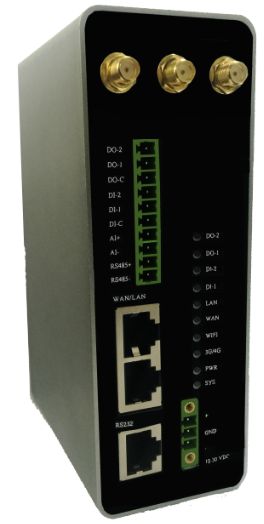

The wireless module based on the 802.11n MIMO technology, three RJ45 Port was designed for the module, one port is Rs232 serial port; the other two ports are 802.3 Ethernet ports; one port for WAN, and the other is LAN; Except that the module can support IO signal transmission (2DI, 2Do, 1AI (4-20mA)), you can send your transmitter data to PLC & HMI by 802.11n. The GPS function also integration into the module, so we can get the location information of industrial devices. The time information also can be get from the GPS module.

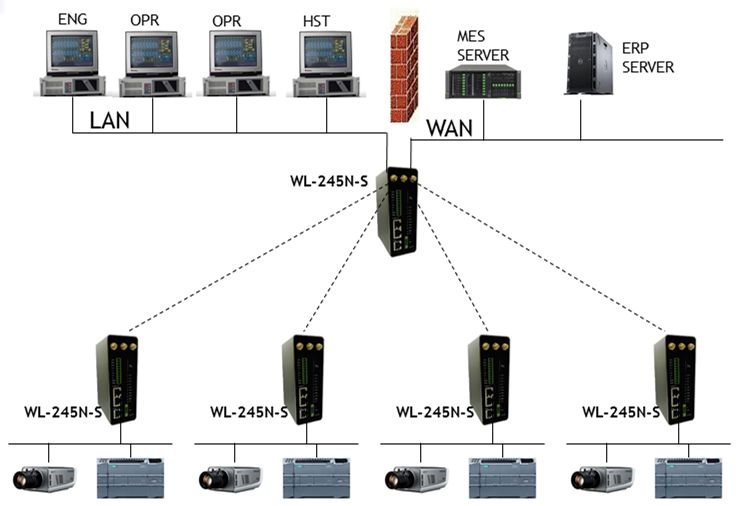

Different from the two layer wireless switch, WL-245N-S has two Ethernet port, one is WAN port and the other is LAN port; the system in different IP segment can be connected through the WL-245N-S module with powerful firewall.
● 300 Mbps RF Rates (MIMO)-Multicast,
● Support routing function, static routing list can be set by webpage
● Powerful Firewall function, Port forward, NAT
● Video Monitoring and Automation Control Simultaneously
● Single webpage setup by field personnel
● 2 port 10/100 Ethernet WAN/LAN switch with routing function
● Support WiFi 802.11a/b/g/n
● Support Channel-Binding
● Centralized management of wireless security policies
● Supports dynamic or static IP addresses assigned by Serve
● Wireless IO signal transmit
● Data priority can be controlled by QoS
● -20°C to +65°C -Operation in all outdoor conditions, rugged construction withstands all operating environments
|
Wireless Standards
|
Support IEEE 802.11n, 802.11h, 802.11i,802.11a, 802.11g (Legacy) wireless operation standard |
|||||||||||||||||||
|
Channel data rates (802.11a/g) |
802.11a/g: 54, 48, 36, 24, 18, 12, 9, 6 Mbps |
|||||||||||||||||||
|
Frequency Band |
2.400 GHz to 2.4835 GHz 5.150 GHz to 5.850 GHz |
1 to 13 36 to 165 |
||||||||||||||||||
|
Transmit Power (Programmable) |
20 dBm (802.11an/gn) |
|||||||||||||||||||
|
Channel data rates (802.11n) |
MCS0 through MCS15, 1 Channel or 2 Channels with 1 Stream or 2 Streams
|
|||||||||||||||||||
|
Receiver Sensitivity (Typical) |
-94 dBm @ MCS0, MCS8 (802.11an/gn) -72 dBm @ MCS7, MCS15 (802.11an) -75 dBm @ MCS7, MCS15 (802.11gn) -94 dBm @ 6 Mbps (802.11an/gn) -76 dBm @ 54 Mbps (802.11a) -81 dBm @ 54 Mbps (802.11g) |
|||||||||||||||||||
|
Security
|
64/128-bit WEP (Wired Equivalent Privacy) WPA & WPA-PSK &WPA2 -PSK(Wi-Fi Protected Access) MAC ID filter |
|||||||||||||||||||
|
Network Features |
||||||||||||||||||||
|
Advanced Firewall Features
|
Network Address Translation (NAT) State full Packet Inspection (SPI) |
|||||||||||||||||||
|
Media Access Control |
CSMA/CA with ACK |
|||||||||||||||||||
|
Others |
WiVPN, DHCP, DNS, DDNS, ICMP |
|||||||||||||||||||
|
Size |
Width 1.6 inches x Height 5.3 inches x Depth 3.7 inches |
|
Weight |
1.2lbs (543g) |
|
Enclosure |
Aluminum DIN-Rail |
|
Interface |
2×RJ45（10/100Mbps），1×Rs232， 3× SMA |
|
Operation Temperature |
-20℃ - 65℃ |
|
Storage Temperature |
-40℃ - 80℃ |
|
Shock |
IEC 60068 2-6 (20g, 3-Axis) |
|
Vibration |
IEC 60068 2-27 (5g, 10Hz to 150Hz) |
|
Humidity |
95% Maximum (Non-condensing) |
|
Power |
10-31VDC |
|
Power consumption |
Idle: 130mA@24VDC Max: 250mA@24VDC Average:160mA@12VDC |
|
Humidity |
Up to 95% RH, with no condensation |
|
External Power PoE Injector |
10 Vdc to 24 Vdc |
|
Average Power Consumption |
less than 9 Watts |
| Certification | CE、RoHS、FCC、IEC61000-4-2、IEC61000-4-8、 EN55022:2010 30MHz-1GHz、EN50581:2012、EN55024:2010 |
